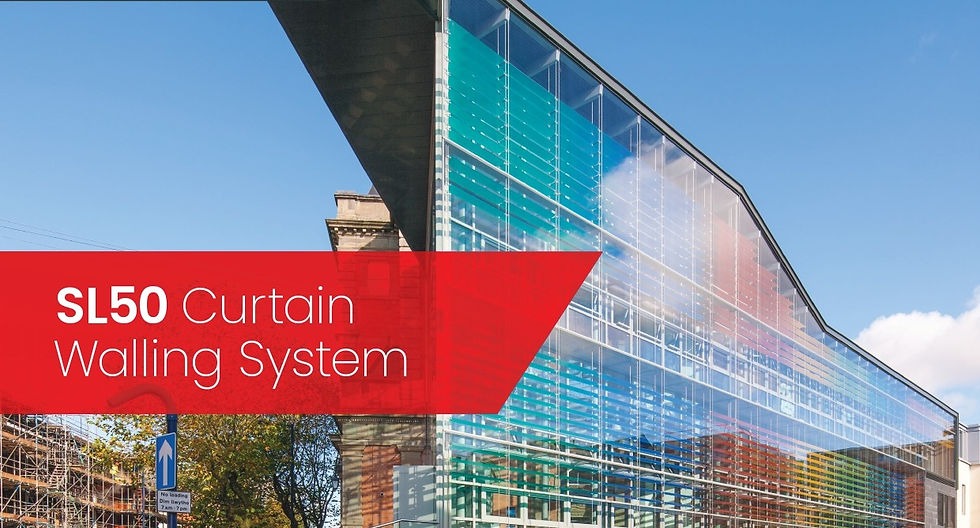

The SL50 system, with mullions and transoms with a width of 50 mm is designed to create vertical, inclined and polygonal curtain walls and winter-gardens. The series includes a full range of profiles to suit any type of static requirement, wind load, and is a traditional system comprising mullion, transom, pressure plate and cover cap with different designs. The system allows insertion of projecting windows both with structural glazing and with mechanical retention of the glass infill, and additional opening elements from the AluK range.
DESIGN FEATURES
-
Mullions and transoms with external mechanical retain pressure-plate and cover-plate
-
For vertical, inclined and polygonal curtain walls and winter-gardens
-
Traditional system of mullion, transom, pressure plate and cover cap of varying designs
-
Frontal dimension of 50 mm
-
Heavy panes up to 690kg
-
Insertion of projecting windows both with structural glazing and with mechanical retention
OPTIONS
-
Integration with sub-structures (wood, steel)
-
Fully integrates with all AluK window and door ranges
-
Available in single or dual colour option, polyester powder coating and anodised finishes
SPECIFICATIONS
CAD CROSS-SECTION
CONFIGURATION
