Infineo frameless sliding door by AluK provides a wide panoramic view with natural light and maximum comfort.
It offers premium contemporary design marking a super sleek upgrade on standard aluminium sliding doors. Featuring a fully concealed outer frame, ultra-slim 21mm interlock, and market-leading performance, available in both thermally broken and non-thermal sections. Along with an ultra-thin interlock for minimal sightlines, the rollers are seamlessly integrated inside the shutter to avoid the risk of dust accumulation, resulting in longer life and flawless transitions.
DESIGN FEATURES
-
Inline sliding door
-
Completely hidden outer frame
-
Suitable for larger glazing panels.
-
Sightlines (Interlock) : 21mm | 31mm
-
Maximum load : 350kg | 450kg /sash
-
Flush Threshold
-
Wheel chair freindly bottom track
OPTIONS
-
One or more large opening panels
-
U- gasket for better air & water tightness and easy installations
-
Stainless steel double-wheel rollers are integrated inside the shutter to avoid the risk of dust accumulation, longer life and smooth transitions
-
Glass range with thicknesses of up to 32mm can be accommodated
-
Slim handle with Single point and Multi-point locks
SPECIFICATIONS

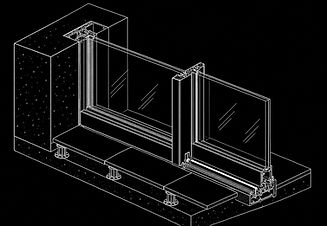

CAD CROSS-SECTION
.jpeg)
.jpeg)
.jpeg)
CONFIGURATION
APPLICATION
-
2 Track 2 Shutter
-
2 Track 4 Shutter
-
3 Track 3 Shutter
-
2 Track 4 Shutter Floating Corner
-
2 Track 2/4 Shutter with Flat Sil
